What is RFID?

RFID stands for Radio Frequency Identification, a technology that uses electromagnetic fields to automatically identify and track tags attached to objects. These tags contain electronically stored information, which can be read from a distance without direct line-of-sight contact, distinguishing RFID from other identification technologies like barcodes.

Components of an RFID System

An RFID system typically comprises three main components:

Tags  A.K.ATransponders : These are small devices attached to the objects to be identified. RFID tags come in two main types:

  • Passive Tags: These do not have an internal power source. Instead, they derive power from the electromagnetic field generated by the RFID reader. They are generally cheaper and have a longer lifespan but have a shorter read range compared to active tags.
  • Active Tags: These contain an internal battery, allowing them to broadcast signals autonomously. They offer a longer read range and can include sensors to capture environmental data, but they are more expensive and have a limited lifespan due to the battery.

Readers  A.K.AInterrogators : These devices emit radio waves to communicate with RFID tags. They receive the data transmitted by the tags and pass it to a computer system for processing. Readers can be fixed  A.K.Astationary  or mobile  A.K.Ahandheld , depending on the application.

Antenna: The antenna facilitates the communication between the reader and the tag by emitting radio waves that activate the tag and receive the data transmitted back. The design and placement of the antenna significantly affect the range and performance of the RFID system.

How RFID Works

The operation of an RFID system involves the following steps:

Tag Activation: The RFID reader sends out a radio signal via its antenna. When a passive RFID tag enters the reader s electromagnetic field, it harvests energy from this signal to power its microchip. Active tags, on the other hand, use their battery power to respond to the reader s signal.

Data Transmission: Once activated, the RFID tag modulates the radio signal and transmits its stored data back to the reader. This data typically includes a unique identifier and can also contain additional information such as location, status, and sensor data.

Data Reception and Processing: The reader captures the data transmitted by the tag and converts it into a digital format. This data is then sent to a central database or software system for further processing and analysis.

Applications of RFID

RFID technology is versatile and can be applied across a myriad of industries and use cases:

Retail: RFID is widely used in retail for inventory management, theft prevention, and enhancing customer experiences. By tagging products with RFID tags, retailers can achieve real-time visibility into their stock levels, reduce shrinkage, and streamline the checkout process.

Healthcare: In healthcare, RFID is used for patient tracking, medication management, and equipment monitoring. It ensures that patients receive the correct treatment, reduces medication errors, and helps locate critical medical equipment quickly.

Logistics and Supply Chain: RFID enhances supply chain visibility by tracking the movement of goods from production to delivery. It enables efficient inventory management, reduces loss and theft, and improves the accuracy of shipment tracking.

Access Control and Security: RFID is employed in access control systems for secure entry to buildings, restricted areas, and even vehicles. RFID cards or badges can be used to grant or deny access based on the individual s credentials.

Asset Tracking: Companies use RFID to monitor and manage their assets, such as machinery, vehicles, and tools. This ensures optimal utilization, maintenance scheduling, and reduces the risk of loss or theft.

Manufacturing: RFID helps in tracking parts and components throughout the manufacturing process, ensuring quality control and timely production. It also assists in managing work-in-progress and finished goods inventory.

Benefits of RFID

The adoption of RFID technology offers numerous benefits:

Improved Efficiency: RFID automates data collection, reducing manual labor and human errors. It speeds up processes such as inventory counts, asset tracking, and access control.

Real-Time Data Access: RFID provides real-time visibility into the status and location of tagged items. This facilitates better decision-making, timely interventions, and enhances operational efficiency.

Enhanced Accuracy: Unlike barcodes, RFID tags do not require line-of-sight scanning, allowing for more accurate and comprehensive data capture. This reduces errors in inventory management and tracking.

Increased Security: RFID enhances security by providing precise tracking of assets and individuals. It helps prevent unauthorized access and reduces the risk of theft or loss.

Scalability: RFID systems can be easily scaled to accommodate growing business needs. Tags and readers can be added or upgraded without significant disruption to existing operations.

Challenges and Considerations

Despite its advantages, RFID technology also presents certain challenges and considerations:

Cost: The initial investment in RFID infrastructure, including tags, readers, and software, can be high. However, the long-term benefits often outweigh the initial costs.

Interference: RFID systems can be susceptible to interference from metals, liquids, and other radio frequency devices. Proper system design and testing are essential to mitigate these issues.

Privacy Concerns: The ability of RFID to track items and individuals raises privacy concerns. Ensuring data security and addressing privacy issues are critical for widespread adoption.

Standardization: The lack of universal standards for RFID technology can lead to compatibility issues between different systems and vendors. Industry-wide standardization efforts are ongoing to address this.

The Future of RFID

The future of RFID technology looks promising, with ongoing advancements and innovations:

Integration with IoT: The integration of RFID with the Internet of Things  A.K.AIoT  will enable smarter, more connected environments. RFID tags can communicate with IoT devices, providing richer data and enhanced automation.

Advanced Analytics: The data collected by RFID systems can be leveraged for advanced analytics, providing valuable insights into operations, customer behavior, and asset utilization. This will drive more informed decision-making and strategic planning.

Improved Tag Capabilities: Ongoing research is focused on developing RFID tags with enhanced capabilities, such as longer read ranges, greater data storage, and integrated sensors for environmental monitoring.

Wider Adoption: As costs decrease and technology improves, RFID adoption is expected to grow across various industries, from agriculture and construction to entertainment and education.

Conclusion

RFID technology has revolutionized data collection and management, offering unparalleled efficiency, accuracy, and real-time visibility. Its applications are vast and varied, transforming industries and driving innovation. While challenges remain, the continued evolution of RFID promises a future where seamless tracking and intelligent data utilization are the norm, unlocking new possibilities for businesses and society.






RFID systems operate at different frequencies, each with its unique characteristics, advantages, and applications. The main frequency bands used in RFID are Low Frequency (LF), High Frequency (HF), Ultra-High Frequency (UHF), and Microwave Frequency. Heres a detailed look at each frequency band and its typical applications:

Low Frequency (LF)

Frequency Range: 30 kHz to 300 kHz (typically 125 kHz or 134.2 kHz)

Characteristics:

  • Short read range (up to 10 cm)
  • Low data transfer rate
  • High resistance to interference from metals and liquids

Applications:

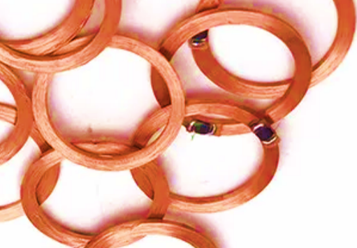

  • Animal Tracking: LF RFID tags are commonly used for identifying and tracking livestock and pets.
  • Access Control: LF systems are often used in secure access control for buildings and vehicles.
  • Asset Tracking: Suitable for tracking high-value assets in environments where metal and liquids are present.

High Frequency (HF)

Frequency Range: 3 MHz to 30 MHz (typically 13.56 MHz)

Characteristics:

  • Moderate read range (up to 1 meter)
  • Higher data transfer rate than LF
  • Moderate resistance to interference

Applications:

  • Smart Cards: Used in contactless payment cards, ID cards, and transit passes.
  • Library Systems: HF RFID is widely used for tracking books and materials in libraries.
  • Inventory Management: Suitable for tracking items in retail and supply chain management.
  • Healthcare: Used for patient tracking, medication management, and equipment monitoring.

Ultra-High Frequency (UHF)

Frequency Range: 300 MHz to 3 GHz (typically 860 MHz to 960 MHz)

Characteristics:

  • Long read range (up to 12 meters or more)
  • High data transfer rate
  • More sensitive to interference from metals and liquids

Applications:

  • Retail Inventory: Widely used in retail for inventory management and loss prevention.
  • Logistics and Supply Chain: Used for tracking shipments, pallets, and containers.
  • Asset Tracking: Suitable for large-scale asset tracking in industrial environments.
  • Vehicle Identification: Used for toll collection, parking management, and vehicle tracking.

Microwave Frequency

Frequency Range: 2.45 GHz and 5.8 GHz

Characteristics:

  • Long read range (up to 30 meters or more)
  • High data transfer rate
  • More prone to interference from environmental factors

Applications:

  • Electronic Toll Collection: Used for automatic toll collection systems on highways.
  • Railway Tracking: Suitable for tracking railway cars and managing rail logistics.
  • Automated Identification Systems: Used in various automated tracking and identification applications.

Choosing the Right Frequency

Selecting the appropriate RFID frequency depends on the specific application requirements, including read range, data transfer rate, environmental conditions, and cost considerations. Here are some guidelines to help choose the right frequency:

  • Short-Range Applications: LF and HF are suitable for applications that require short read ranges and where interference from metals and liquids is a concern.
  • Medium-Range Applications: HF provides a balance between read range and data transfer rate, making it ideal for inventory management and access control.
  • Long-Range Applications: UHF and Microwave frequencies are suitable for applications that require long read ranges and high-speed data transfer, such as logistics, supply chain management, and vehicle identification.

By understanding the characteristics and applications of each RFID frequency band, organizations can make informed decisions to deploy RFID systems that best meet their operational needs and enhance their data collection and management processes.
